Tunguska-M
Initial Operational Capability (IOC) : 1990
Total Production : ?
| Model | Status | Year | Produced |
|---|---|---|---|
| Tunguska-M | Active | 1990 | ? |
Tunguska-M
Group : Local Air Defenses
Status : Active
Also Known As : 2K22M1, 2S6M, 9K22, SA-19 Grison, Tunguska-M1
Origin :
Russia
Contractors : Almaz-Antey Concern, KBP
Initial Operational Capability (IOC) : 1990
Total Production : ?
Unitary Cost : USD $16.0 million
The Tunguska-M is a short range missile/gun weapon system mounted on a 2S6 tracked armored vehicle. Its features a detection/tracking/fire control radar system and optical sensors mounted on the armored vehicle turret. It is intended to protect ground armored units from air strikes carried out by helicopters and fixed-wing aircraft at low altitude in any weather condition.
Each Tunguska-M weapon system comprises 8 sealed 9M311 missiles and two 30mm two-barrel 2A38M guns. The 30mm 2A38M gun provides a rate of fire of 4,800 rounds per minute at ranges from 200 to 4,000 meters. The 30mm guns can also engage targets flying from 0 to 3,000 meters of altitude. The Tunguska entered service in 1990 and features firing on the move capability to better achieve its goals.
Operators
Belarus
Germany
India
Morocco
UkraineSpecifications
| Notes | ||
|---|---|---|
| Ammunition Load | 1904 | 30mm rounds |
| Crew | 4 | |
| Number of Barrels | 4 | |
| Number of Cannons | 2 | |
| Number of Weapons | 8 | |
| Rolling Rubber Wheels | 6 | |
| Dimensions | ||
| Main Gun Caliber | 30 millimeter | |
| Mass | ||
| Combat Weight | 34,000 kilogram | |
| Percentage | ||
| Gradient | 70 % | |
| Side Slope | 47 % | |
| Performance | ||
| Ditch Crossing Ability | 2 meter | |
| Fording Depth | 1 meter | |
| Main Gun Max Range | 4,000 meter | |
| Main Gun Min Range | 200 meter | |
| Max Detection Range | 25 kilometer | |
| Max Range | 500 kilometer | |
| Target's Max Altitude | 3,500 meter | |
| Target's Min Altitude | 0.000 meter | |
| Weapon Max Range | 10,000 meter | |
| Weapon Min Range | 2,500 meter | |
| Rate | ||
| Max Rate of Fire | 4,800 roundperminute | |
| Speed | ||
| Cross Country Speed | 40 kph | |
| Target's Max Speed | 500 mps | |
| Top Speed | 65 kph | |
| Temperature | ||
| Max Operating Temperature | 65 ° Celsius | |
| Min Operating Temperature | -50.00 ° Celsius | |
| Time | ||
| Reaction Time | 10 second | |
| SetUp Time | 8.4 second | |
News
Russia’s Southern Battlegroup inflicted roughly 450 casualties on the Ukrainian army and destroyed two enemy tanks in its area of responsibility over the past day, the Defense
Head of the Sheglovsky Val company stated that first prototype of the crawler-mounted Pantsir air defense system is expected to be developed by early 2017.
Commander of the Russian Land Force’s air defense stated that Russia is developing a new 57 caliber anti-aircraft weapon system to replace two existing systems.
KHABAROVSK, August 20 (RIA Novosti) — Air defense units of the Eastern Military District successfully repelled a simulated attack, hitting all aircraft and combat drone targets
Photo Gallery
June 2018

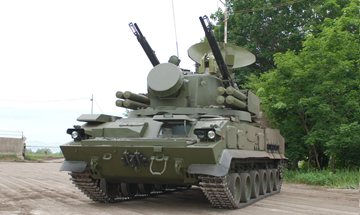

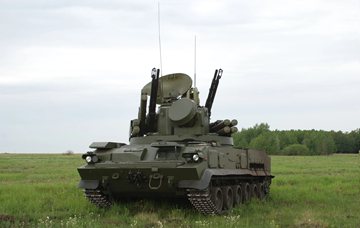

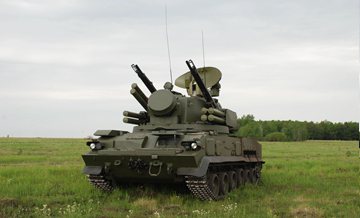

Tunguska-M1 air defense system
